Description

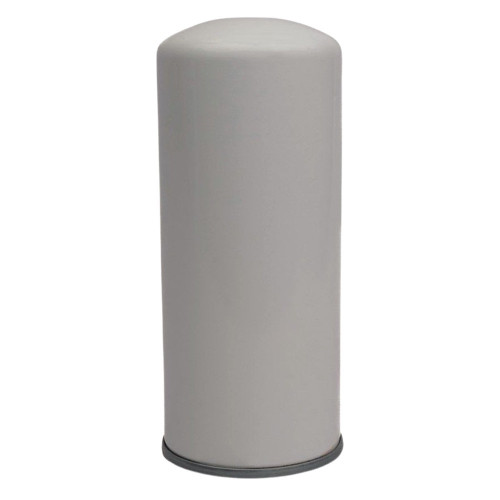

The SF FILTER HY13008 pressure line filter element replacement uses glass media to capture hydraulic contamination before it reaches downstream components. It is designed for outside-in flow and uses a Viton gasket.
Check the element dimensions and your housing requirements before ordering. The HY13008 replacement is rated for 435 psi collapse pressure and an operating temperature range of -13°F to 248°F.
| Element Type | Pressure Line |
| Filter Media | Glass |
| Micron Rating | 5 micron |
| Beta Ratio | β200 at 5.4 µm; β1000 at 7.7 µm |
| Flow Direction | Outside-In |
| Collapse Pressure | 435 psi |
| Operating Temperature | -13°F to 248°F |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Filter Area | 49 sq. in. |
| Capacity | 5 g |
| Outside Diameter (Top) | 1.380 in. |
| Outside Diameter (Bottom) | 1.380 in. |
| Inside Diameter (Top) | 0.490 in. |
| Height | 3.660 in. |
This is an aftermarket replacement for SF FILTER HY13008 and is not manufactured by SF FILTER.
Warranty Information
We guarantee our SF FILTER SPA50024 separator replacement will meet or exceed the specifications, performance and warranty of the SF FILTER OEM air/oil separator.
