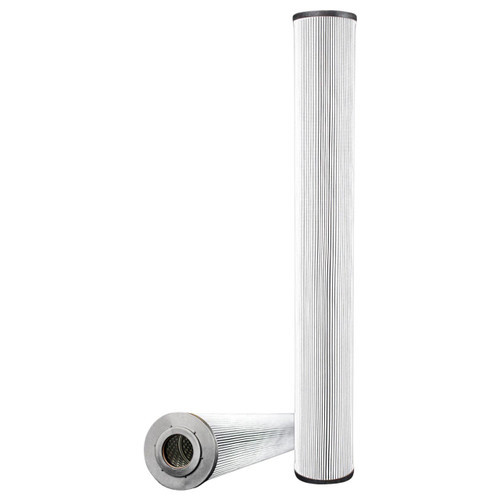

Schroeder 27KZ3 Hydraulic Filter Replacement
This aftermarket replacement for the Schroeder 27KZ3 is a glass-media hydraulic filter element for pressure-line applications. Its 3-micron filtration helps capture fine particles that can contribute to wear in pumps, valves, and other hydraulic components.
The element uses outside-to-inside flow and Viton seals. Check the dimensions and specifications against your existing element before ordering, and replace it according to your equipment’s maintenance schedule or filter restriction indicator.
| Replacement For | Schroeder 27KZ3 |
| Filter Type | Hydraulic pressure-line element |
| Filter Media | Glass |
| Micron Rating | 3 µm |
| Beta Ratios | β3 = 200; β4.5 = 1000 |
| Flow Direction | Outside-to-inside |
| Gasket Material | Viton |
| Collapse Pressure | 145 PSI |
| Operating Temperature | -13°F to 248°F |
| Fluid Types | HH / HL / HM / HV |
| Dirt-Holding Capacity | 233 g |
| Filter Area | 3,144 square inches |
| Outside Diameter | 3.9" |
| Inside Diameter | 1.65" |
| Height | 27.95" |
| Weight | 4.99 lb |
This is an aftermarket replacement and is not manufactured by Schroeder.
Warranty Information
We guarantee our Schroeder 27KZ3 filter replacement will meet or exceed the specifications, performance, and warranty of the Schroeder OEM hydraulic filter cartridge.
