Big Filter Savings the Big Brands Trust. Since 1976.

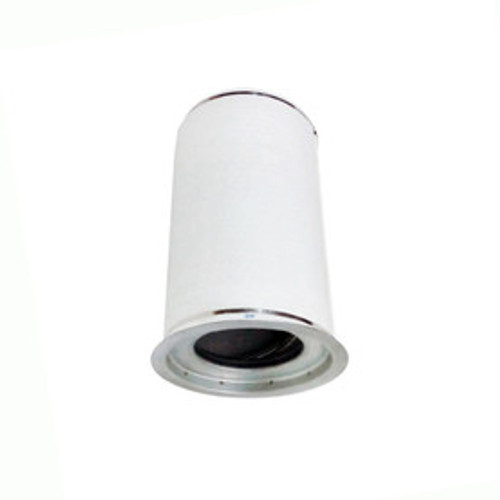

POWER SYSTEM CS3775G000 Filter Replacement

SKU:
CS3775G000
POWER SYSTEM CS3775G000 Filter Replacement
$147.34

Description

The POWER SYSTEM CS3775G000 filter separator replacement is 0.3 micron with Fiberglass / Microglass filter media. This air oil separator offers equal to or better filtration performance based on the original OEM filter separator specifications.

Air / oil separators are used to remove water, oil vapor and other contaminants from a compressed air line. These aftermarket separators provide the highest level of clean compressed air with a minimum loss of pressure. Our air oil separators are tough enough to hold their shape under pressure and maintain even pressure differentials to avoid collapsing of the filter separator.

The POWER SYSTEM CS3775G000 filter separator equivalent is manufactured with the highest quality standards including: ANSI / CAGI Institute ADF 400-1999 Compressed Air and Gas, ISO / FDIS 8573-4 and code number of sale 1DJ40 U.S. Government. We have replaced all major brands of OEM and replacement filters in tens of thousands of applications.

Extra Information

Outside Diameter:
6.75"
Outside Diameter (Flange):
7.88"
Inside Diameter:
4.25"
Height:
12"
Micron Rating:
0.3 Micron
Filter Media:
Fiberglass & Microglass
Operating Pressure:
100 PSI
Delta P:
2 - 3 PSI
End Seal:
Urethane
Filter Media Surface Area:
1.44 Cubic Feet
Flow Direction:
Outside / Inside
Flow Capacity:
144 CFM
Operating Temperature:
-35 F / 250 F

Warranty Information

We guarantee our POWER SYSTEM CS3775G000 filter replacement will meet or exceed the specifications, performance and warranty of the POWER SYSTEM OEM filter separator.
