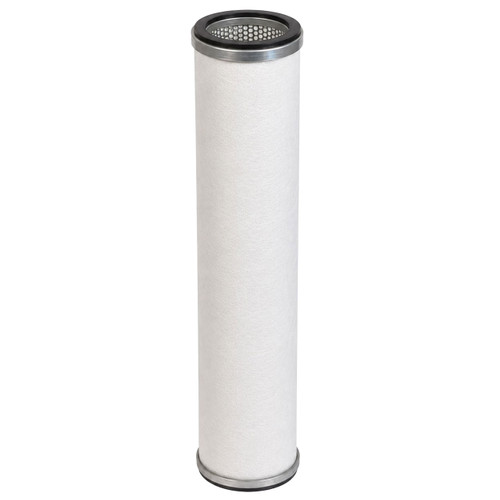

PNEUMATECH C-280-35/G10/HT High Temperature Grade 10 Coalescing Filter Replacement
The FES replacement for the PNEUMATECH C-280-35/G10/HT is a premium aftermarket high-temperature coalescing filter element engineered to reliably remove liquid aerosols, compressor oil, and solid contaminants from compressed air systems. Designed to meet or exceed OEM performance, this element helps protect downstream dryers, valves, instrumentation, and production equipment while maintaining low pressure drop and long service life.
This replacement is intended for Pneumatech line filter housings requiring a 28-inch high, 4-inch outside diameter Grade 10 high-temperature element. Grade 10 elements provide general-purpose coalescing filtration with approximately 1 micron particle retention, making them an excellent choice for protecting refrigerated and desiccant air dryers as well as general industrial compressed air applications. The HT designation identifies the element as a high-temperature version for applications with elevated inlet air temperatures.
How It Works
As compressed air passes through the coalescing media, suspended oil aerosols and fine liquid droplets merge into larger droplets that drain away by gravity, while solid particles are captured within the filter media. The result is cleaner compressed air with reduced contamination reaching downstream equipment, improving reliability and extending the life of dryers, regulators, valves, and pneumatic components.
Features & Benefits
- Premium aftermarket replacement for PNEUMATECH C-280-35/G10/HT
- Grade 10 coalescing media for approximately 1 micron filtration
- High-temperature (HT) element design
- Removes oil aerosols, water droplets, and solid contaminants
- Helps reduce downstream equipment wear and maintenance costs
- Low pressure drop for efficient system operation
- Manufactured to meet or exceed OEM performance standards
Installation & Maintenance
Replace the filter element whenever the pressure drop reaches the manufacturer's recommended limit or during scheduled preventive maintenance. Replacing saturated coalescing elements helps maintain proper airflow, minimizes energy consumption, and protects downstream equipment from oil and particulate contamination.
Why Choose This Filter?
FES replacement filters are manufactured using high-quality filtration media and durable construction to provide reliable performance and long service life. Every element is designed for proper fit, dependable sealing, and consistent filtration performance, giving you an economical alternative to OEM replacement elements.
Specifications
| Specification | Value |
| OEM Part Number | C-280-35/G10/HT |
| Filter Type | High Temperature Coalescing Filter Element |
| Filter Grade | Grade 10 |
| Micron Rating | 1 micron (nominal) |
| Outside Diameter (OD) | 4.00" |
| Inside Diameter (ID) | 2.95" |
| Height | 28.03" |
| Construction | Double Open End (DOE) |
| Application | Compressed Air Line Filtration |
Note: This is a premium aftermarket replacement filter designed to fit applications requiring the PNEUMATECH C-280-35/G10/HT element. OEM part numbers are used for identification purposes only.
Warranty Information
We guarantee our PNEUMATECH C-280-35/G10/HT filter replacement will meet or exceed the specifications, performance and warranty of the PNEUMATECH OEM filter element.
