PALL HC8900 FKS16H Filter Replacement

SKU:
HC8900 FKS16H

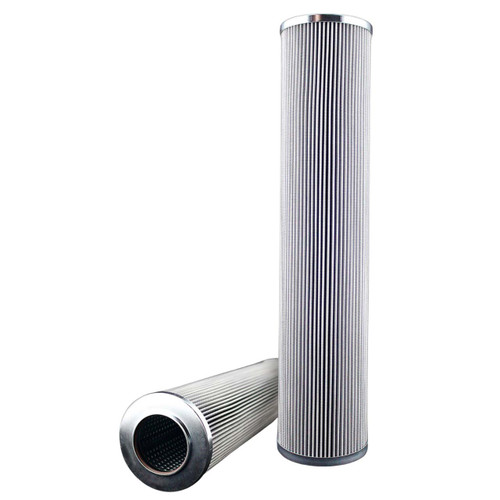

Pall HC8900FKS16H hydraulic filter replacement. The image shows the filter standing upright and an alternate view of the top-open inlet.
$85.00

Description

The PALL HC8900FKS16H filter element replacement is built with the highest quality materials and workmanship. This hydraulic filter element offers filtration performance equal to or better than the original OEM filter specifications.

Hydraulic filter elements are used to remove contamination from a lube oil or hydraulic fluid system. These hydraulic filters deliver the highest level of fluid cleanliness to reduce operating costs and prevent failures. Our hydraulic filter cartridges are tough enough to hold their shape under pressure and maintain consistent pressure differentials to prevent the filter element from collapsing.

Specifications

Filter Media Glass
Height 16.880"
OD Top 3.780"
ID Top 2.220"
OD Bottom 3.780"
Collapse Pressure 363 PSI
Operating Temperature -13°F to 248°F
Flow Direction Outside-In
Gasket Material Viton
Fluid Type HH / HL / HM / HV
Beta Ratio 1 200/9.9
Beta Ratio 2 1000/12.4
Micron Rating 10 Micron
Weight 3.7 lbs

The PALL HC8900 FKS16H filter element equivalent is manufactured with the highest quality standards, including: ANSI / CAGI Institute ADF 400-1999 Compressed Air and Gas, ISO / FDIS 8573-4, and code number of sale 1DJ40 U.S. Government. We have replaced all major OEM and replacement filter brands in tens of thousands of applications.

Warranty Information

We guarantee our PALL HC8900 FKS16H filter replacement will meet or exceed the specifications, performance and warranty of the PALL OEM filter element.
