Description

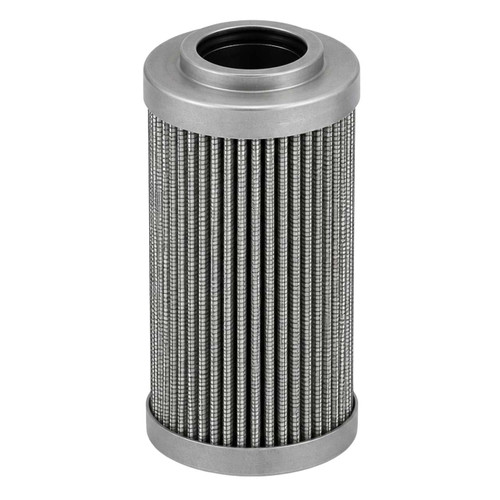

The MP Filtri CU1102A10ANP01 hydraulic filter element replacement is designed to offer equal or better filtration performance compared to the original MP Filtri OEM filter specifications.
Hydraulic filter elements remove contaminants from lubricating oil or hydraulic fluid. They provide the highest level of clean fluids to reduce operating costs and prevent failure. Our hydraulic filter cartridges are designed to withstand high pressures and maintain consistent pressure differentials, preventing the filter element from collapsing.
Hydraulic Return Line Filter Element
This replacement hydraulic return line filter element is designed for outside-in flow and uses glass filter media for reliable contaminant removal in hydraulic oil systems. It is compatible with HH, HL, HM, and HV hydraulic fluids and includes Viton gasket material for dependable sealing across a wide operating temperature range.
Product Specifications
| Part Type | Hydraulic |
|---|---|
| Element Type | Return Line |
| Filter Media | Glass |
| Micron Rating | 10 micron |
| Beta Ratio | β200 ≥ 9.9 µm / β1000 ≥ 12.4 µm |
| Flow Direction | Outside-In |
| Collapse Pressure | 290 PSI |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Operating Temperature | -13°F to 248°F |
Dimensions
| Height | 5.710" |
|---|---|
| OD Top | 2.520" |
| ID Top | 1.270" |
| OD Bottom | 2.520" |
This is a replacement filter element only and is not manufactured by MP Filtri.
The MP Filtri CU1102A10ANP01 hydraulic filter equivalent is manufactured with the highest quality standards and is guaranteed. We have replaced all major OEM hydraulic filter brands in tens of thousands of applications since 1976.
Warranty Information
We guarantee our MP Filtri CU1102A10ANP01 filter replacement will meet or exceed the specifications, performance, and warranty of the OEM MP Filtri hydraulic filter cartridge.
