Description

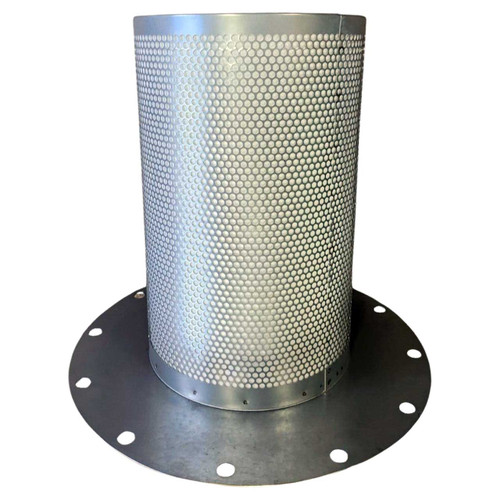

This aftermarket air/oil separator replaces MANN-FILTER 49 306 52 171. It separates oil from compressed air in a rotary screw compressor and returns the collected oil to the lubrication system.
Check the flange, opening, and overall height against your existing separator before ordering. Replace the element according to your compressor’s maintenance schedule or when its pressure drop calls for service.
| Product Type | Air/Oil Separator |
| Replaces | MANN-FILTER 49 306 52 171 |
| Outside Diameter | 13.39" |
| Inside Diameter | 10.31" |
| Flange Outside Diameter | 23.35" |
| Flange Mounting Holes | 12 holes, 0.87" diameter |
| Height | 21.38" |
Warranty Information
We guarantee our MANN FILTER 49 306 52 171 filter replacement will meet or exceed the specifications, performance and warranty of the MANN FILTER OEM filter element.
