Description

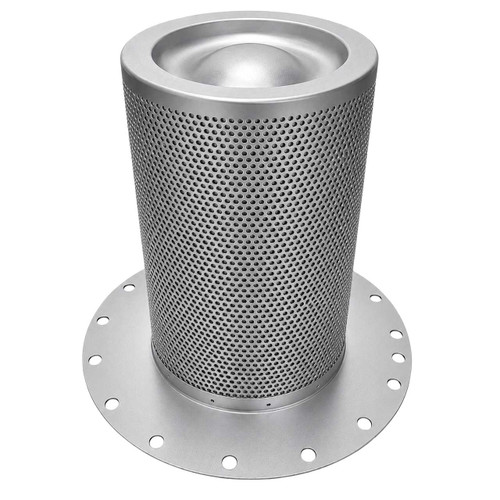

The KV690-009 air/oil separator element is engineered to efficiently remove lubricating oil from compressed air before it leaves the compressor. Constructed with premium microglass media, it provides excellent oil separation efficiency while maintaining low pressure drop, helping reduce oil carryover, improve air quality, and protect downstream equipment.
This 41-pound replacement separator is designed for rotary screw air compressors operating in demanding industrial environments. High-efficiency separator media helps extend lubricant life, reduce operating costs, and maintain compressor performance throughout the recommended service interval.
Our replacement for the KV690-009 is manufactured in the USA to meet or exceed OEM performance and fit, providing dependable service and long operating life.
| Product Specifications | |
| OEM Part Number | KV690-009 |
| Filter Element Type | Air/Oil Separator |
| Media | Microglass Fiberglass |
| Outer Diameter | 13.78" |
| Inner Diameter | 10.39" |
| Height | 21.25" |
| Flange Diameter | 23.43" |
| Residual Oil Content | <3 ppm |
| Flow Direction | Outside-In |
| Application | Rotary Screw Air Compressors |
Features & Benefits
- Premium microglass media for outstanding oil separation efficiency.
- Helps maintain residual oil carryover at 3 ppm or less under normal operating conditions.
- Low pressure drop promotes compressor efficiency and lower energy consumption.
- Heavy-duty construction for reliable performance in industrial compressor applications.
- Direct replacement for KV690-009 air/oil separator.
*Actual service life depends on operating conditions, lubricant quality, and maintenance practices.
Warranty Information
We guarantee our KV690-009 filter separator replacement will meet or exceed the specifications, performance, and warranty of the OEM oil separators it replaces.
