Description

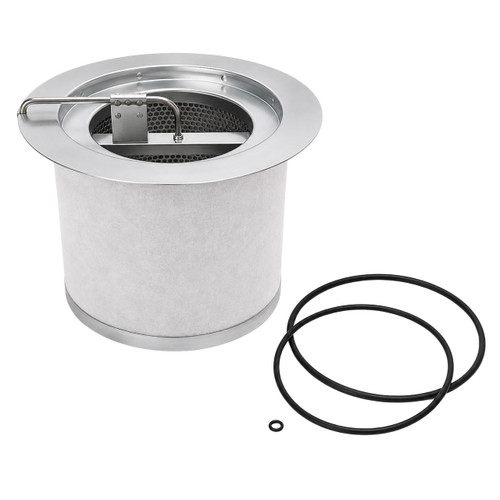

KV115-033 Air/Oil Separator Replacement
The KV115-033 air/oil separator is designed for use in compatible oil-injected rotary screw air compressors. This drop-in style separator installs inside the compressor separator vessel and removes entrained lubricant from the compressed air stream before the air leaves the sump.
Effective air/oil separation helps minimize lubricant carryover while maintaining efficient compressor operation. As separator media becomes loaded over time, differential pressure can increase and compressor efficiency may decrease. Replacing the separator at the recommended service interval helps maintain proper system performance.
Features & Benefits
- Replacement for KV115-033
- Drop-in style air/oil separator
- Designed for oil-injected rotary screw compressors
- Helps minimize lubricant carryover into the compressed air system
- Helps maintain low pressure drop and efficient compressor operation
- Outside-to-inside flow configuration
- Includes two sealing O-rings
Common Applications
The KV115-033 air/oil separator is used in select Ingersoll Rand and Mechanequip rotary screw compressors, including variable-speed compressor configurations. Compressor model and serial number should be verified before ordering, as separator requirements can vary between compressor configurations and production ranges.
Specifications
| Filter Type | Air/Oil Separator |
| Configuration | Drop-In |
| Outside Diameter | 9.41" |
| Inside Diameter | 6.99" |
| Flange Outside Diameter | 12.80" |
| Height | 8.39" |
| Flow Direction | Outside-In |
| Seals | 2 O-Rings Included |
Installation & Maintenance
Inspect and replace the air/oil separator according to the compressor manufacturer's recommended maintenance schedule or when excessive separator differential pressure or oil carryover is observed. The sealing surfaces should be cleaned and inspected during installation, and the supplied O-rings should be properly positioned before reinstalling the separator vessel cover.
Why Choose This Replacement?
This KV115-033 air/oil separator provides a direct replacement option for compatible rotary screw compressors. Proper separator maintenance helps control oil carryover, maintain compressor efficiency, and protect downstream compressed air equipment.
Part Number: KV115-033
Warranty Information
We guarantee this KV115-033 separator replacement will meet or exceed the specifications, performance, and warranty of the OEM separator.
