Description

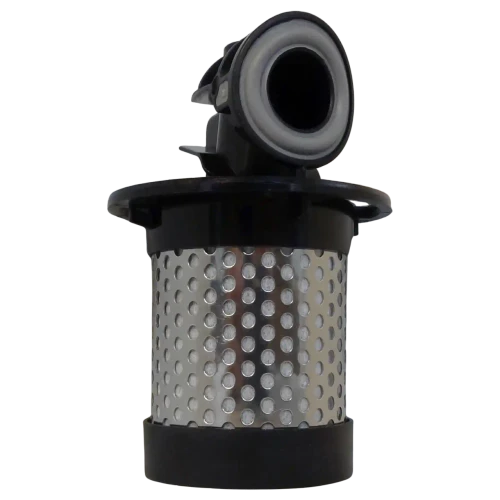

KPQD7+ Activated Carbon Filter Element
The KPQD7+ filter element is an aftermarket activated carbon filter for Atlas Copco filter housings. Its carbon media adsorbs oil vapor and helps reduce oil-related odors in compressed air.
Install the KPQD7+ in the matching filter housing downstream of water separation, coalescing filtration, and drying equipment. Keeping liquid water and oil aerosols out of the carbon stage helps preserve its adsorption capacity.
| Part Number | KPQD7+ |
| Replacement For | Atlas Copco QD7+ |
| Element Type | Activated Carbon / Oil Vapor Removal |
| Filter Media | Activated Carbon |
| Inlet Seal | Soft Concave Elastomer Seal |
| Outside Diameter (Bottom) | 2.11 in |
| Inlet Outside Diameter | 1.25 in |
| Inlet Inside Diameter | 0.61 in |
| Flange Outside Diameter | 2.85 in |
| Height | 3.79 in overall |
| Flat-to-Flat Height | 2.40 in |
| Neck Height | 1.39 in |
The inlet includes a soft concave elastomer seal. No additional loose O-rings or seals are included. Follow your maintenance schedule when replacing the element, since activated carbon can become exhausted without a noticeable increase in pressure drop.
Warranty Information
We guarantee our KPQD7+ filter replacement will meet or exceed the specifications, performance and warranty of the OEM filter element.
