Description

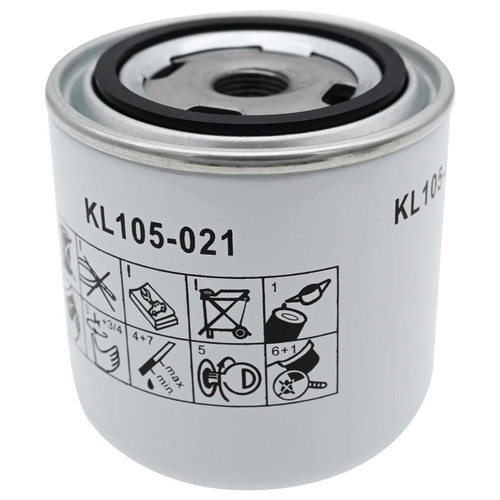

The KL105-021 Oil Filter is a high-quality aftermarket spin-on filter designed to remove particulate contamination from lubricating oil. Featuring a 10 micron filtration rating, the KL105-021 helps maintain clean oil and protect critical equipment components from contamination-related wear.
The KL105-021 features a 3/4"-16 threaded connection and an integral bypass valve rated at 8–15 PSID. Its compact spin-on design allows for convenient filter changes while providing reliable oil filtration in demanding industrial equipment applications.
| Filter Type | Spin-On Oil Filter |
| Micron Rating | 10 µm |
| Outside Diameter | 3.81" |
| Height | 3.69" |
| Thread | 3/4"-16 |
| Gasket Outside Diameter | 2.75" |
| Gasket Inside Diameter | 2.38" |
| Gasket Thickness | 0.25" |
| Gasket Shape | Square |
| Operating Pressure | 203 PSID |
| Bypass Valve Pressure | 8–15 PSID |
| Surface Area | 1.94 ft² |
| Capacity | 9.0 g |
| Weight | 6.0 lbs |
The KL105-021 is manufactured as a direct-fit aftermarket replacement for applications requiring its dimensions, thread size, filtration rating, and bypass specifications. Routine filter replacement helps maintain proper fluid cleanliness, reduce component wear, and support reliable oil system operation.
Warranty Information
We guarantee our KL105-021 filter replacement will meet or exceed the specifications, performance and warranty of the many OEM oil filters it replaces.
