JONELL JMG336-R Gas Filter Element Replacement

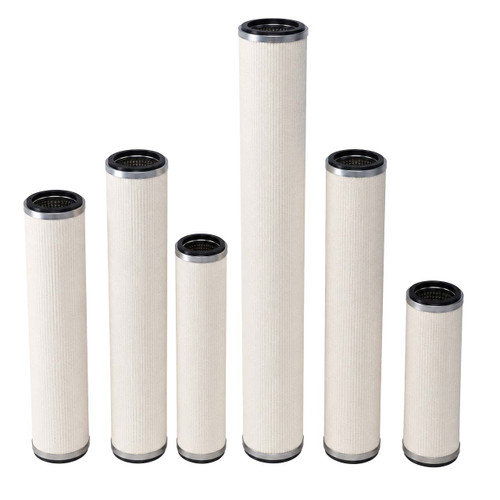

The JONELL JMG336-R gas filter element replacement is a depth-type filter element designed for the removal of solid contamination from natural gas and other compatible process gas streams. It uses fiberglass media and a double-open-end configuration for installation in compatible gas filter and filter-separator housings.
This replacement element has a 0.30 micron absolute filtration rating and an inside-to-out flow direction. Carbon steel end caps, a carbon steel center tube, and an outer protective jacket provide structural support during service, while Buna-N seals help maintain a secure fit in compatible applications.
The element is rated for a maximum operating temperature of 160°F. A recommended changeout differential pressure of 15 PSID provides a practical service guideline for monitoring element loading and scheduling replacement.
Product Features
- Replacement for JONELL JMG336-R
- Depth-type fiberglass filter media
- 0.30 micron absolute filtration rating
- Inside-to-out flow direction
- Double-open-end configuration
- Carbon steel end caps and center tube
- Protective outer jacket
- Buna-N seal material
- Polyurethane adhesive construction
- Electrotin-plated metal components
Typical Applications
- Natural gas filtration
- Gas gathering and transmission systems
- Compressor stations
- Fuel gas conditioning
- Process gas filtration
- Industrial gas filter and filter-separator vessels
Specifications
| Outside Diameter | 4.50 in |
| Inside Diameter | 3.13 in |
| Height | 36.00 in |
| Element Type | Depth Type |
| Filter Media | Fiberglass |
| Micron Rating | 0.30 Micron Absolute |
| Flow Direction | Inside to Out |
| Maximum Operating Temperature | 160°F |
| Recommended Changeout Differential Pressure | 15 PSID |
| Seal Material | Buna-N |
| Adhesive | Polyurethane |
| End Cap Material | Carbon Steel |
| Center Tube Material | Carbon Steel |
| Plating | Electro Tin Plated |
| Outer Jacket | Yes |
| Configuration | Double Open End |
| Thread | None |
| Handle | None |
OEM Cross Reference
- JONELL JMG336-R
This is an aftermarket replacement filter element and is not manufactured by or affiliated with Jonell Systems. Manufacturer names and part numbers are used solely for identification and cross-reference purposes.
Warranty Information
We guarantee our JONELL JMG336-R filter replacement will meet or exceed the specifications, performance and warranty of the JONELL OEM filter element.
