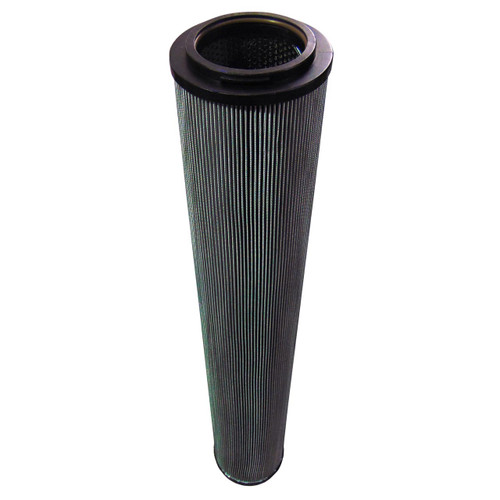

HYDAC 2600R003BN3HC Hydraulic Filter Replacement
The FES HYDAC 2600R003BN3HC hydraulic filter replacement is designed for return line filtration in industrial and mobile hydraulic systems. This aftermarket element uses high-efficiency glass media to remove fine particulate contamination from hydraulic fluid before it returns to the reservoir.
With an outside-in flow direction, a 353-gram contaminant-holding capacity, and 4,774 square inches of filtration area, this element provides dependable system cleanliness while supporting consistent hydraulic performance. The element has a Beta ratio of 200 at 3 microns and 1,000 at 4.5 microns.
A 435 PSI collapse pressure rating provides structural durability during demanding operating conditions. The integrated bypass valve is set at 43.5 PSI, while the Viton gasket offers reliable sealing and compatibility with common HH, HL, HM, and HV hydraulic fluids.
This replacement element is manufactured to match the fit, form, and function of the HYDAC 2600R003BN3HC hydraulic filter element.
Product Features
- Return line hydraulic filter element
- High-efficiency glass filtration media
- Beta 200 efficiency at 3 microns
- Beta 1,000 efficiency at 4.5 microns
- Outside-in flow direction
- 353-gram contaminant-holding capacity
- 435 PSI collapse pressure rating
- 43.5 PSI bypass valve setting
- Viton gasket material
- Compatible with HH, HL, HM, and HV hydraulic fluids
Specifications
| Part Type | Hydraulic |
| Filter Element Type | Return Line |
| Filter Media | Glass |
| Outside Diameter | 5.65 in |
| Inside Diameter | 3.8 in |
| Height | 36.26 in |
| Beta Ratio | β200 = 3 µm |
| Beta Ratio | β1000 = 4.5 µm |
| Flow Direction | Outside-In |
| Bypass Valve Setting | 43.5 PSI |
| Collapse Pressure | 435 PSI |
| Contaminant-Holding Capacity | 353 g |
| Filter Area | 4,774 sq in |
| Gasket Material | Viton |
| Minimum Operating Temperature | -13°F |
| Maximum Operating Temperature | 248°F |
| Compatible Fluids | HH / HL / HM / HV |
| Weight | 14.74 lb |
Replaces
- HYDAC 2600R003BN3HC
Warranty Information
We guarantee our HYDAC 2600R003BN3HC filter replacement will meet or exceed the specifications, performance and warranty of the HYDAC OEM filter element.
