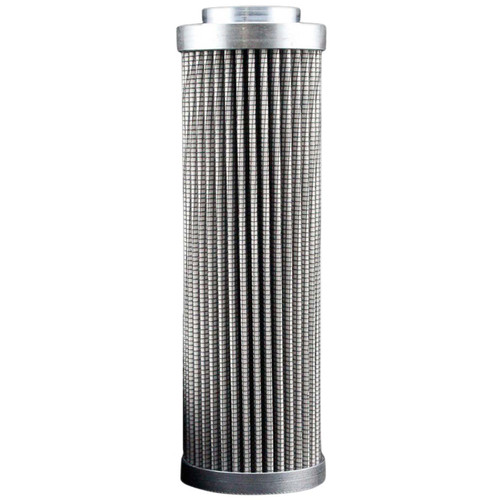

HYDAC 0110D003BH4HC Hydraulic Filter Element Replacement
The HYDAC 0110D003BH4HC is a high-collapse pressure line filter element designed for fine contamination control in hydraulic systems. Its 3-micron glass fiber media helps protect pumps, valves, actuators, and other precision components from damaging particulate contamination.
Designed for outside-to-inside flow, this element combines high filtration efficiency with a 3,045 PSI collapse pressure rating. Its Viton gasket supports reliable sealing in demanding hydraulic applications and across a broad operating temperature range.
Features & Benefits
- 3-micron glass fiber media provides efficient fine-particle removal
- High 3,045 PSI collapse pressure for pressure line service
- Beta 200 efficiency rating at 3 microns
- Outside-to-inside fluid flow
- 142 square inches of filtration area
- Viton gasket for dependable chemical and temperature resistance
- Compatible with HH, HL, HM, and HV hydraulic fluids
Common Applications
The 0110D003BH4HC is suitable for hydraulic pressure line filtration in industrial machinery, hydraulic power units, machine tools, mobile equipment, manufacturing systems, material-handling equipment, and other systems requiring high-efficiency fluid filtration.
Product Specifications
| Manufacturer Part Number | 0110D003BH4HC |
| Filter Element Type | Pressure Line |
| Filter Media | Glass Fiber |
| Micron Rating | 3 Micron |
| Beta Ratio | Beta 200 at 3 Micron; Beta 1000 at 4.5 Micron |
| Outer Diameter | 1.85" |
| Inner Diameter | 0.87" |
| Height | 6.02" |
| Collapse Pressure | 3,045 PSI |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Contaminant-Holding Capacity | 11 Grams |
| Filter Area | 142 sq. in. |
| Operating Temperature | -13°F to 248°F |
| Compatible Fluids | HH, HL, HM, and HV Hydraulic Fluids |
| Weight | 0.77 lb. |
Installation & Maintenance
Replace the element at the equipment manufacturer’s recommended service interval or when the filter housing’s differential pressure indicator signals excessive restriction. Before installing the replacement, clean the housing, inspect the sealing surfaces, and verify that the Viton gasket is clean and correctly positioned.
Why Choose This Filter Element?
The HYDAC 0110D003BH4HC combines fine 3-micron filtration, high collapse strength, and a larger filtration area for reliable pressure line protection. Routine replacement helps maintain clean hydraulic fluid, reduce component wear, and support consistent system performance.
Warranty Information
We guarantee our HYDAC 0110D003BH4HC filter replacement will meet or exceed the specifications, performance, and warranty of the HYDAC OEM filter element.
