Description

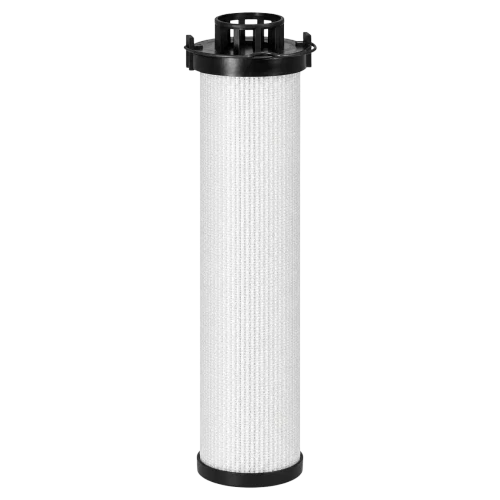

Looking for a HYDAC 0090R010MM replacement? This aftermarket 10 micron hydraulic filter element uses synthetic microglass media and installs exactly like the original. The microglass media is rated Beta 1000 at 15 microns (99.9% capture) and Beta 200 at 12 microns, for consistent, high-capacity filtration.
Specifications: 2.05" OD x 0.87" ID x 6.65" tall, Buna-N seals, outside-in flow, 290 PSI (20 bar) collapse rating and a 43.5 PSI (3 bar) bypass setting.
Extra Information
Filter Media:
Microglass
Micron Rating:
10 micron
Outside Diameter:
2.05"
Inside Diameter:
0.87"
Overall Height:
6.65"
Seal Material:
Buna-N
Bypass Valve:
43.5 PSI (3 bar)
Notes:
Outside-in flow. Collapse pressure 290 PSI (20 bar). Beta 1000 at 15 micron(c), Beta 200 at 12 micron(c). Plastic end caps.
Replaces:
HYDAC 0090R010MM
Warranty Information
We guarantee this aftermarket replacement for the HYDAC 0090R010MM hydraulic filter meets or exceeds the specifications and performance of the original element, backed by our satisfaction guarantee. Brand names are trademarks of their respective owners.
