Description

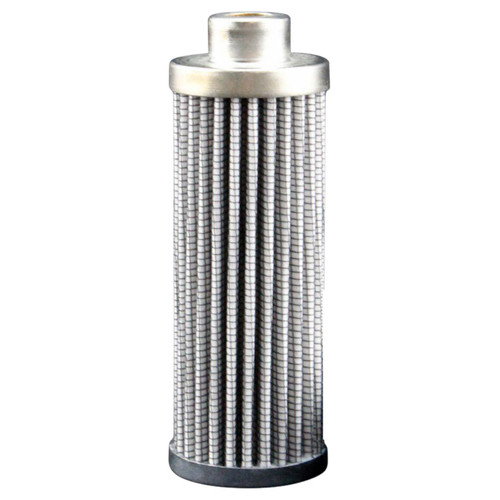

HYDAC 0030R010BN3HC Hydraulic Filter Element
The HYDAC 0030R010BN3HC is a return line hydraulic filter element designed for reliable contamination control in industrial hydraulic systems. Its glass fiber media provides efficient particle removal while maintaining good dirt-holding capacity and consistent flow performance.
This element is rated at 10 micron and uses Viton seals for compatibility with a wide range of common hydraulic fluids. It is designed for outside-to-inside flow and is suitable for demanding return line filtration applications where dependable fluid cleanliness is important.
Features & Benefits
- 10 micron hydraulic filtration
- High-efficiency glass fiber media
- Return line filter element
- Outside-to-inside flow direction
- Viton gasket material
- 435 PSI collapse pressure
- Suitable for HH, HL, HM and HV hydraulic fluids
- Designed for dependable hydraulic contamination control
Specifications
| Filter Element Type | Return Line |
| Filter Media | Glass |
| Micron Rating | 10 Micron |
| Outside Diameter | 1.38" |
| Inside Diameter | 0.48" |
| Height | 4.13" |
| Collapse Pressure | 435 PSI |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Operating Temperature | -13°F to 248°F |
The HYDAC 0030R010BN3HC is commonly used in hydraulic return line applications to capture wear particles and other contaminants before fluid returns to the reservoir, helping protect pumps, valves and other sensitive hydraulic components.
Warranty Information
We guarantee our HYDAC 0030R010BN3HC filter replacement will meet or exceed the specifications, performance and warranty of the HYDAC OEM filter element.
