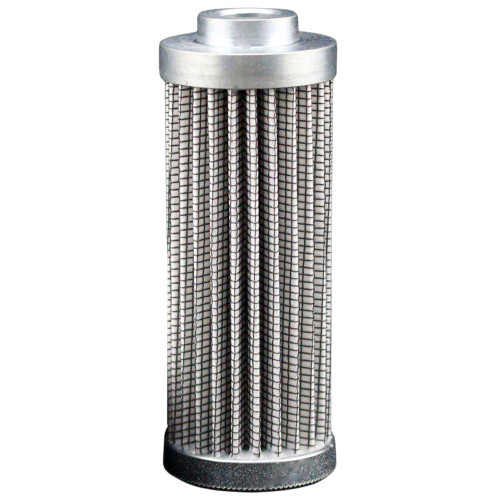

HYDAC 0030D003BH4HC Hydraulic Filter Element Replacement
The HYDAC 0030D003BH4HC is a high-collapse pressure line filter element designed to remove fine particulate contamination from hydraulic fluid. Its 3-micron glass fiber media provides efficient filtration for hydraulic systems where component protection, fluid cleanliness, and reliable operation are critical.
This replacement element is built for outside-to-inside flow and is suitable for use with common mineral and petroleum-based hydraulic fluids. A Viton gasket provides dependable sealing across a wide operating temperature range.
Features & Benefits
- 3-micron glass fiber media captures fine hydraulic system contamination
- High 3,045 PSI collapse pressure for demanding pressure line applications
- Beta 200 filtration rating at 3 microns
- Outside-to-inside flow configuration
- Viton gasket provides reliable chemical and temperature resistance
- Compatible with HH, HL, HM, and HV hydraulic fluids
- Compact design for HYDAC 0030-series filter housings
Common Applications
The 0030D003BH4HC is commonly used in pressure line filtration systems serving industrial machinery, hydraulic power units, mobile equipment, machine tools, manufacturing systems, and other applications requiring fine contamination control.
Product Specifications
| Manufacturer Part Number | 0030D003BH4HC |
| Filter Element Type | Pressure Line |
| Filter Media | Glass Fiber |
| Micron Rating | 3 Micron |
| Beta Ratio | Beta 200 at 3 Micron; Beta 1000 at 4.5 Micron |
| Outer Diameter | 1.38" |
| Inner Diameter | 0.48" |
| Height | 3.66" |
| Collapse Pressure | 3,045 PSI |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Contaminant-Holding Capacity | 4 Grams |
| Filter Area | 49 sq. in. |
| Operating Temperature | -13°F to 248°F |
| Compatible Fluids | HH, HL, HM, and HV Hydraulic Fluids |
| Weight | 0.30 lb. |
Installation & Maintenance
Replace the hydraulic filter element according to the equipment manufacturer’s recommended service interval or when the filter housing’s differential pressure indicator shows that service is required. Clean the housing and sealing surfaces before installation, inspect the Viton gasket, and confirm that the element is properly seated before returning the system to operation.
Why Choose This Filter Element?
The HYDAC 0030D003BH4HC provides fine 3-micron filtration, high collapse resistance, and dependable sealing in a compact pressure line element. It is a practical replacement for maintaining hydraulic fluid cleanliness and protecting pumps, valves, actuators, and other sensitive components.
Warranty Information
We guarantee our HYDAC 0030D003BH4HC filter replacement will meet or exceed the specifications, performance, and warranty of the HYDAC OEM filter element.
