Description

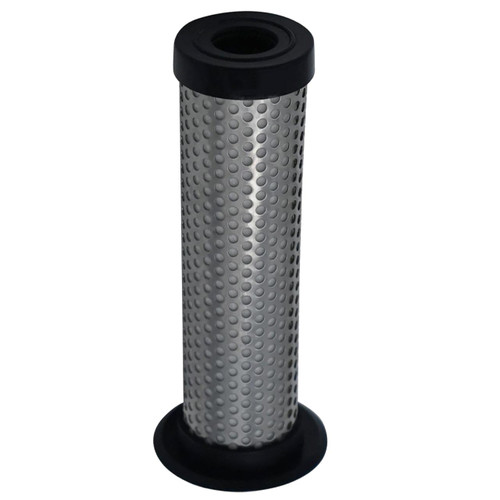

The Hankison E7-20 replacement filter element provides general-purpose filtration for compressed air systems. It removes liquid water, oil aerosols, and solid contaminants down to 1 micron while helping reduce remaining oil content to 1.0 ppm.
This Grade 7 element is commonly used as a prefilter for higher-efficiency coalescing filters or as a general air-line filter protecting pneumatic tools, motors, cylinders, and other downstream equipment. Durable polyester needlefelt media provides dependable contaminant removal with low resistance to airflow.
- Direct replacement for the Hankison E7-20 filter element
- General-purpose Grade 7 compressed air filtration
- Removes liquid water, oil aerosols, and solid particulate
- Rated for particulate removal down to 1 micron
- Maximum remaining oil content of 1.0 ppm
- Designed for Hankison HF7-20 compressed air filter housings
- Quality aftermarket construction for dependable performance and service life
| Product Specifications | |
| Filter Element Type | General-Purpose Air Line |
| Filtration Grade | Grade 7 |
| Micron Rating | 1 Micron |
| Maximum Remaining Oil Content | 1.0 ppm |
| Product Media | Polyester Needlefelt |
| Flow Capacity | 60 SCFM at 100 PSIG |
| Outside Diameter | 1.56 Inches |
| Inside Diameter | 0.78 Inches |
| Flange Outside Diameter | 2.36 Inches |
| Height | 6.00 Inches |
| Thread Size | M8 × 1.25 |
Regular element replacement helps maintain compressed air quality, minimize pressure drop, and protect downstream equipment. Always depressurize the filter housing completely before performing service.
Warranty Information
We guarantee our HANKISON E7-20 filter replacement will meet or exceed the specifications, performance and warranty of the HANKISON OEM filter element.
