Description

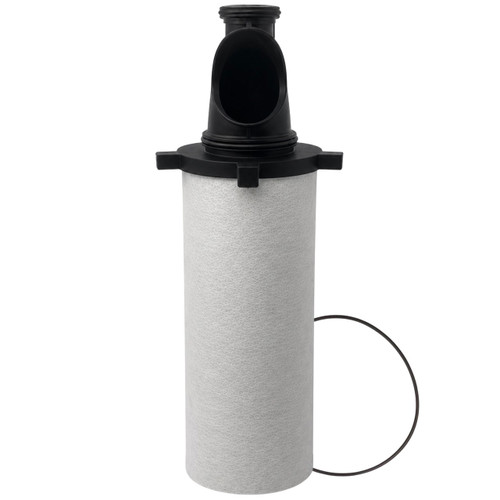

The FS-CURTIS D339FE filter replacement is an activated carbon coalescing adsorber filter element designed to remove oil vapors, hydrocarbons, and odors from compressed air systems. This element helps protect dryers, valves, regulators, pneumatic controls, and other downstream equipment from contamination-related wear and performance issues.
This FS CURTIS D339FE replacement element is commonly used as an aftermarket alternative to the original SULLAIR element. Adsorber filters remove oil vapor using activated carbon and typically achieve a residual oil content of 0.003 mg/m³ or better when used with proper upstream prefiltration. They are commonly used in food and beverage processing, pharmaceutical manufacturing, instrumentation, packaging equipment, and other applications where ultra-clean compressed air is required.
| OEM Part Number | FS CURTIS D339FE |
| Filter Grade | Activated Carbon |
| Micron Rating | 0.003 mg/m³ of residual oil or better |
| Filter Element Type | Activated Carbon Adsorber Filter Element |
| Outside Diameter | 3.88" |
| Overall Length | 14.00" |
| Body Length | 10.44" |
| Top Neck Outside Diameter | 1.50" |
| Top Neck Inside Diameter | 1.19" |
| Top Section Length | 2.12" |
| Drain Diameter | 0.12" |
| Included Seals | Includes O-ring seals |
| Large O-ring | 5.25" × 0.139" (133 × 3.53 mm) |
Replacing the FS-CURTIS D339FE filter element on schedule helps reduce pressure drop, maintain clean compressed air, and extend the life of downstream equipment. This aftermarket replacement is built for reliable performance in demanding compressed air systems.
Warranty Information
We guarantee our FS-CURTIS D339FE filter replacement will meet or exceed the FS Curtis OEM coalescing filter's specifications, performance, and warranty.
