Big Filter Savings the Big Brands Trust. Since 1976.

ELGI B676103 Spin-On Air/Oil Separator Replacement

SKU:
B676103

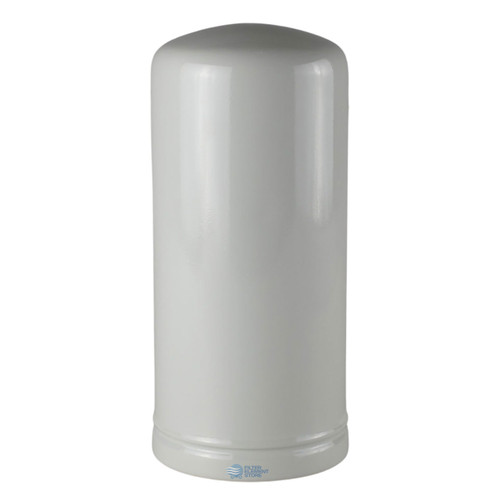

Elgi B76103 air/oil separator filter. Spin-on-style separator with threads.
$72.29

Description

ELGI B676103 Air/Oil Separator Replacement

The FES aftermarket replacement for ELGI B676103 is a premium air/oil separator designed for rotary screw air compressors. Built to meet or exceed OEM performance, it efficiently removes lubricating oil from the compressed air stream before the air exits the separator tank, helping reduce oil carryover while protecting downstream equipment and maintaining compressor efficiency

Manufactured using high-efficiency coalescing media and durable metal components, this separator provides excellent separation performance, low pressure drop, and dependable service life. Premium sealing materials help ensure a reliable seal under demanding operating conditions, making it an ideal replacement for routine compressor maintenance.

Features

  • Direct aftermarket replacement for ELGI B676103
  • High-efficiency air/oil separation media minimizes oil carryover
  • Low restriction design helps maintain compressor performance and energy efficiency
  • Heavy-duty metal construction for long service life
  • Premium Viton gasket for reliable sealing
  • Manufactured to meet or exceed OEM performance specifications
  • Made in the USA

Extra Information

Outside Diameter (Top):
3.78"
Outside Diameter (Bottom):
3.91"
Height:
8.54"
Micron Rating:
0.3 Micron
Thread:
M24 X 1.5 Thread
Gasket Material:
Viton
Maximum Flow Rate:
70 CFM at 100 PSI
Maximum Working Pressure:
290 PSI
Recommended Change Out Pressure:
14.5 PSID
Relief Valve:
No
Average Recommended Service Life:
4,000 Hours
Base Plate:
201

Warranty Information

We guarantee our ELGI B676103 separator replacement will meet or exceed the specifications, performance, and warranty of the Elgi OEM filter separator.
