Description

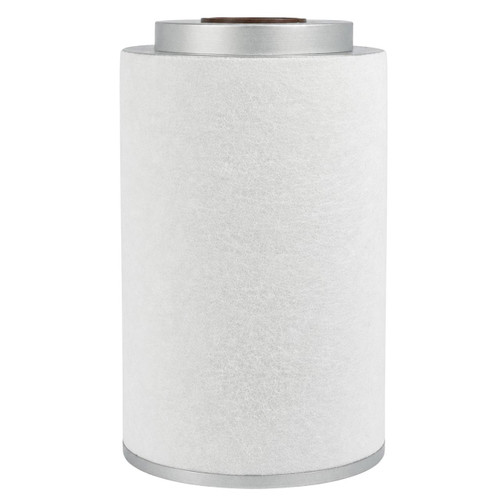

The ATLAS COPCO 1604-0320-82 air/oil separator replacement is designed for use in rotary screw air compressors to remove oil aerosol from the compressed air stream. Its fiberglass/microglass media provides efficient separation while maintaining low pressure drop through the element.
This aftermarket separator is manufactured to match the fit and operating requirements of the original Atlas Copco element. It features open steel end caps, a Viton seal, a urethane end seal, and outside-to-inside airflow.
ATLAS COPCO 1604-0320-82 Specifications
| Specification | Value |
|---|---|
| Filter Element Type | Air/Oil Separator |
| Media | Fiberglass / Microglass |
| Outer Diameter | 10.31" |
| Inner Diameter | 3.12" |
| Height | 18.25" |
| Micron Rating | 0.3 Micron |
| Flow Capacity | 380.7 CFM |
| Flow Direction | Outside-In |
| Seal Material | Viton |
| End Seal | Urethane |
| End Caps | Open / Open Steel Caps |
| Operating Temperature | -35°F to 250°F |
| Weight | 17 lb |
Regular replacement of the air/oil separator helps control oil carryover, reduce lubricant loss, and maintain efficient compressor operation. A separator should be inspected or replaced when differential pressure increases, oil carryover becomes excessive, or the compressor reaches its recommended maintenance interval.
Replaces: ATLAS COPCO 1604-0320-82
Warranty Information
We guarantee our ATLAS COPCO 1604-0320-82 filter replacement will meet or exceed the specifications, performance, and warranty of the ATLAS COPCO OEM filter separator.
