Activated alumina desiccant is used in compressed air dryers to remove moisture and maintain air quality. Choosing the right bead size helps balance drying performance, airflow, and service life.
The right activated alumina bead size depends on your dryer design and what matters most in your system, whether that is maximum drying performance, balanced operation, or lower pressure drop.
Activated alumina desiccant is one of the most widely used medias in compressed air dryers. It is reliable, cost-effective, and capable of delivering consistent drying performance when the correct bead size and quality are used.
At Filter Element Store, we have been supplying activated alumina desiccant for over 20 years, with millions of pounds sold. In real-world systems, one of the most common mistakes is choosing the wrong bead size for the application.
What is Activated Alumina Desiccant?

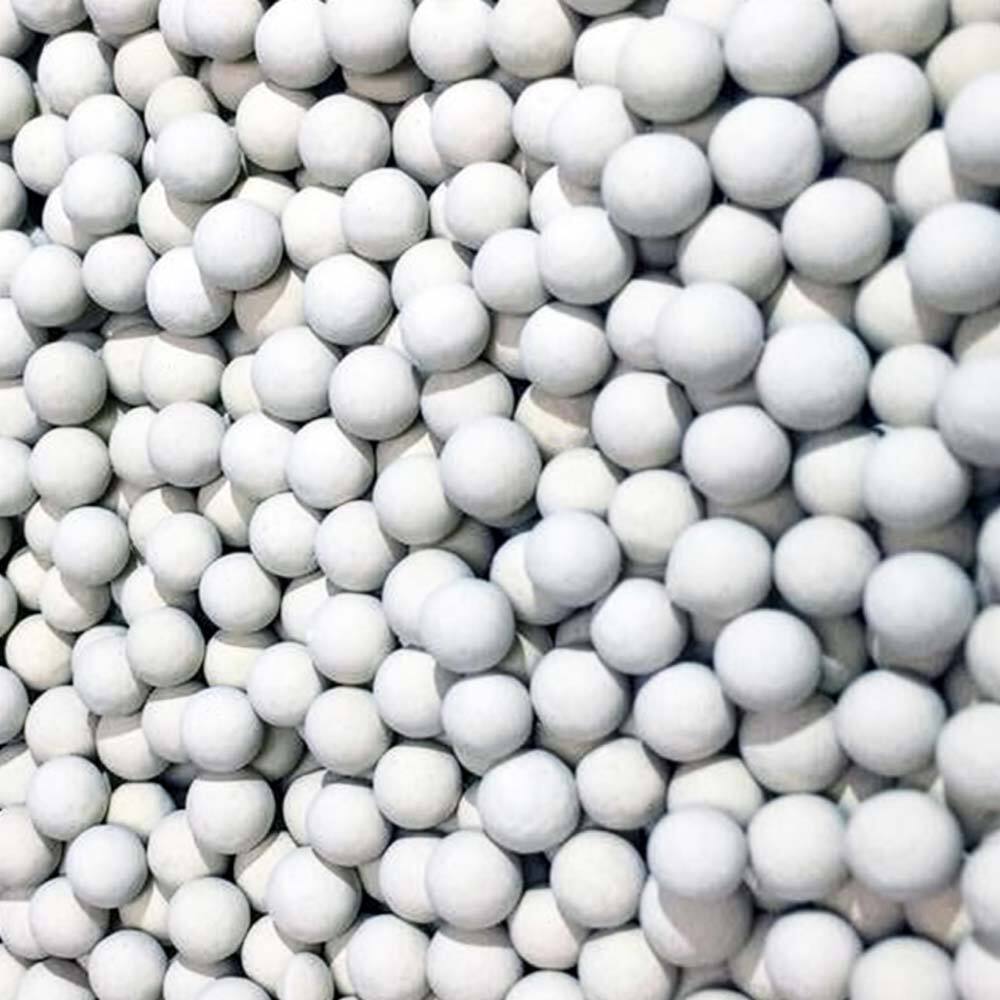

Activated alumina is a porous form of aluminum oxide used as a desiccant dryer media. It removes moisture through adsorption and is commonly used in compressed air dryers and other industrial drying applications.
Good activated alumina offers dependable moisture removal, strong crush strength, and low dusting when the system is properly maintained.
Common Bead Sizes
Each bead size has its place. Choosing the right one can affect drying performance, pressure drop, airflow, and service life.
1/8" Bead
1/8" activated alumina is often used when maximum adsorption performance is important. The smaller bead size provides more surface area, which helps improve moisture removal.
The tradeoff is higher pressure drop compared to larger bead sizes. The 1/8" beads are the most popular desiccant size.
Shop 1/8" Activated Alumina Desiccant3/16" Bead
3/16" activated alumina is a strong middle-ground option. It helps balance drying performance, airflow, and durability, which makes it a practical choice for many compressed air systems.
If you want a size that is not too fine and not too coarse, this is often the safest place to start.
Shop 3/16" Activated Alumina Desiccant1/4" Bead
1/4" activated alumina is often selected when lower pressure drop and stronger bead durability are priorities. The larger bead size allows better airflow through the bed.
The tradeoff is less surface area for adsorption compared to smaller beads.
Shop 1/4" Activated Alumina DesiccantQuick Comparison
| Bead Size | Best For | Main Tradeoff |
|---|---|---|
| 1/8" | Maximum drying performance | Higher pressure drop |
| 3/16" | Balanced performance and airflow | Middle-ground option |
| 1/4" | Lower pressure drop and durability | Less adsorption surface area |
Why Desiccant Quality Matters
Bead size is only part of the picture. The quality of your compressed air dryer desiccant also affects dusting, bed stability, service life, and overall drying performance.
- Low dusting helps reduce fines and downstream contamination
- Consistent bead size helps minimize channeling
- Strong crush strength helps support longer service life
- Reliable moisture adsorption helps maintain dryer performance
For most compressed air dryers, 3/16" is a strong starting point. Use 1/8" when maximum drying performance matters most, and 1/4" when airflow and durability are the bigger priorities.
If you are not sure which activated alumina desiccant is right for your dryer, Filter Element Store can help you choose the best size for your application.
