Description

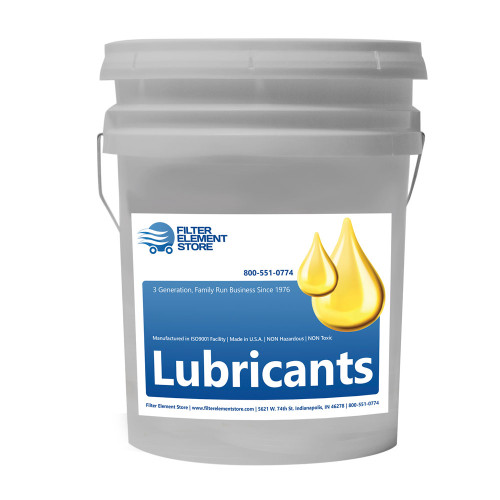

Our FES 203323 Extended Life Food Grade 32 / 46 lubricant 5 gallon compressor oil is a synthetic NSF H-1 approved food grade lubricant. Our food grade compressor oil is approved for incidental food contact and is an ideal choice for common food processing and distribution applications.
Semi-annual service intervals continue to be commonplace in food related applications, and FES 203323 lubricant ensures being able to reach these change-out intervals.
Typical Compressor Applications:
• Rotary Screw Compressors – ISO 32, 46 & 68
Made in the USA
View the literature for our ISO 32/46 Extended Life Food Grade Compressor Oil.
FES Food Grade 46 Technical Data Sheet
View the properties, available sizes, and OEM crosses for FES Food Grade 46.
FES Food Grade 46 typical properties
| Typical property | Test method | Typical value |
|---|---|---|
| Color | Visual | Light Yellow |
| Clarity | Visual | Clear |
| ISO Viscosity Grade | ISO 3448 | 46 |
| Viscosity @ 40°C (cSt) | ASTM D445 | 48.0 |
| Viscosity @ 100°C (cSt) | ASTM D445 | 6.9 |
| Viscosity Index | ASTM D2270 | 98 |
| Pour Point °C (°F) | ASTM D5950 | -34 (-29) |
| Density @ 15°C (g/cm³) | ASTM D4052 | 0.873 |
| Flash Point °C (°F) | ASTM D92 | 230 (446) |
| Fire Point °C (°F) | ASTM D92 | 259 (498) |
| Neutralization Number (mg KOH/g) | ASTM D974 | 0.3 |
| Rust Prevention (24 h) | ASTM D665B | Pass |
| Copper Strip Corrosion | ASTM D130 | 1a |
| Foam Tendency / Stability | ASTM D892 | 0/0, 0/0, 0/0 |
| Water Separation @ 54°C | ASTM D1401 | 40/40/0 |
| Water Separation @ 82°C | ASTM D1401 | - |
Typical values, not a specification. Confirm suitability for your application.
FES Food Grade 46 replaces
- Atlas Copco: 1310-2036-21
- Atlas Copco Roto-Foodgrade Fluid: 1630-0833-00
- Champion RotoLub 4000FG
- Chicago Pneumatic ScrewGuard Rotair FG: 1630082100, 1630060500, 1630082101
- CompAir: SSL-35F, 204-1368-55
- FS-Curtis FSC-Max Fluid FG: FSC-4000FG-5
- FS-Curtis: VO416
- Gardner Denver: 28H35
- Gardner Denver Aeon 6000FG: 28H39
- Gardner Denver Aeon 9000FG: 28H428, 28H427
- Ingersoll Rand: 39433719, 39433883
- Ingersoll Rand Ultra FG: 23973977, 23973985
- Kaeser FG-460
- Quincy QuinSyn F: 110756-005, 1627456002, 110756-055, 2013100019
- Sullair: 250029-008
- Sullair PristineFG: 02250196-470, 02250196-471
- Sullivan-Palatek Food Grade 32 LL: 00062-005
- Anderol FGC 32
- Anderol FGC 46
- CPI CPI-4600-32F
- CPI CPI-4600-46F
- ISEL 6061-32
- ISEL 6061-46
- Jax 405-32
- Jax 405-46
- Mobil SHC Cibus 32
- Mobil SHC Cibus 46
- Royal Purple Poly Guard FDA 32
- Royal Purple Poly Guard FDA 46
- SAP 9000-32
- SAP 9000-46
- Summit: FG ELITE-46
- Summit FG-100
- Summit FG-200
- Synflo 80FG
- Ultrachem Omnilube 520
- Ultrachem OmniLube 546
Extra Information
Warranty Information
We guarantee our FES 203323 Food Grade Compressor Oil ISO 32 / 46 Extended Life will meet or exceed the specifications and performance of comparable OEM compressor oils.
The above specifications are typical of current production. While future production will conform to manufacturer specification, variations in these characteristics may occur. It is always advised to evaluate any recommendations and/or specifications with application specialists, and the history of your compressor fluid usage, to confirm suitability.
